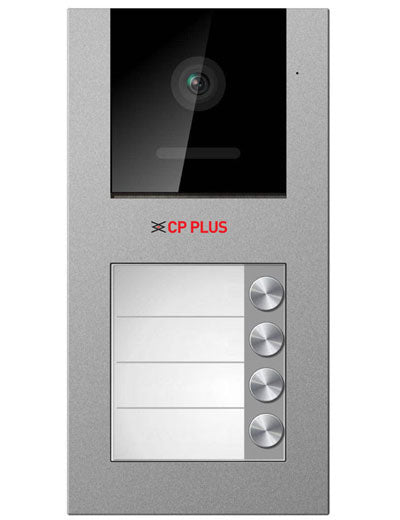

CP-PAV-C341

4 Door Bell Outdoor Unit

1/4" Smart Sensor
4 Monitor Button (4x3=12 monitors support)
One Lock Support

System Overview

CP PLUS has introduced a wide range of Video DoorPhones (also known as video door entry or video intercom) which are stand-alone intercom systems that you can use to manage calls made at the entrance to a building (residential complex, detached family home, workplace, etc.) with access controlled by audio visual communication between the inside and outside.

Feature Specification
ensor 1/4'' Smart Sensor Monitor Support 4 Button (4x3 = 12 monitors Support) Horizontal View Angle 90° Diagonal Angle 105° Lock Support Support one Lock Effective pixels 960(H) × 576(V) Illuminance 0.1 Lux@(F1.2,AGC ON), 0LUX with IR Shutter Auto Synchronization Inter-sync Frame rate 960H @25fps/960H @30fps Video Output CVBS Temperature/humidity -20 to 60°C, Relative humidity is less than 90% Efficiency DC12V (±20%) - 60mA Dimensions 32mm x 32mm
