CP-DPS-MD50P-12D

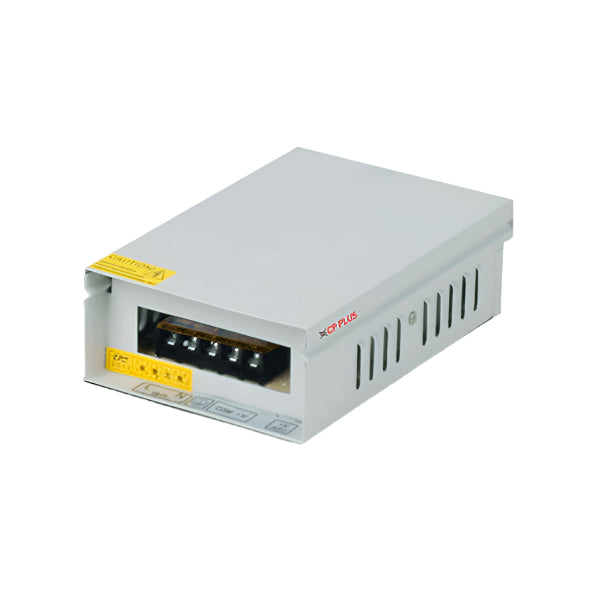

Metal Case Power Supply (Premium Series)

Wide range of Input voltage 190V~250V AC
Add more cameras with higher power budget 12V, 5A
Built-in EMI filter to nullify interference
Voltage regulator switch for voltage adjustment
Protections: Overload / Over Voltage / Short Circuit
Metal Housing for uniform/quick heat dissipation

Input voltage 180~264VAC
Output voltage 12V DC
Current Range 0~5A
Rated Power 60W
Ripple & Noise (max.) 100mVp-p
Voltage Adj. Range 11.4~13.2V
Line Regulation ±1.0%
Voltage Tolerance ±2.0%
Setup Rise time 600ms, 30ms at full load
Hold Up Time (Typ.) 13ms at full load
Load Regulation ±5.0%
Temperature coefficient ±0.03%/°C (0~50°C)
Frequency Range 47~63HZ
Efficiency (Typ.) 84%
AC Current (Typ.) 5A/115VAC 3A/230VAC
Inrush Current (Typ.) 20A/115VAC 40A/230VAC
Leakage Current <2mA / 240VAC
Over Load 110~200% rated output power, Protection type: Shut down O/P, re-power
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
Working Humidity 20~90% RH Non-condensing
Vibration 10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X, Y, Z axes
Dimension 156(L) x 103(W) x 47mm(H)
Store temperature -20~+85°C, 10~95%RH
Working temperature -20~+40°C
Withstand Voltage I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG:0.5KVAC
CP Plus 5amp 12V 4x CCTV Power Supply (CP-CPS-PD04-12D)
SKU: CP-CPS-PD04-12D
₹495.00Price
Sales Tax Included
Quantity
1

Add to Cart

Buy Now

Product Warranty
One Year Off-Site Warranty!
Provide GST Bill to avail warranty services.

Refund Policy
We sell only genuine product in Brand New Condition (sealed pack). There is no Refund, only warranty is available.
