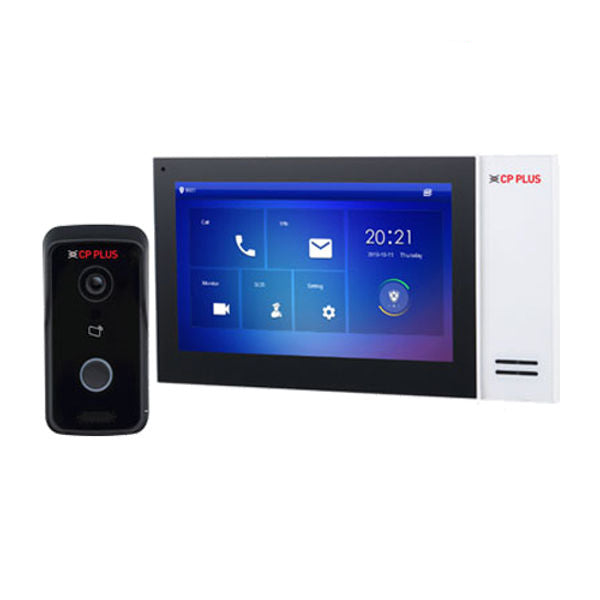

CP-UVK-711M

IP Villa Door Station & Indoor Monitor

IP Villa Door Station
High definition camera; WDR
IP65(Silicone sealant is needed. For details, see the quick start guide.)
Supports auto IR illumination and D/N
Card/app remote/indoor monitor unlock
Supports two-way voice call; support calls between door stations and app
10,000 cards
Tamper Alarm
Support standard PoE power supply
IP Indoor Monitor
IPC surveillance
Alarm integration
Embedded 8GB SD card
High performance

Communication Mode Full digital
Display 7-inch TFT screen
Audio Input 1 channel all-direction microphone
Audio Output Built-in 1.5W loudspeaker
IR Auto IR
Power Source 12V DC 1A Standard PoE - IP Villa Door Station ; PoE or DC 12V - Indoor Monitor
Power Consumption IP Villa Door Station: Standby≤1W, working≤5W ; Indoor Monitor : Standby≤4W, work≤6W
Operating Temperature -30°C to +60°C (-20°F to +60°F ) - IP Villa Door Station ; -10°C to +55°C (+14°F to +131°F) - Indoor Monitor
Humidity 10%RH–95%RH
Dimension 135mm×70.4mm×34.4mm (IP Villa Door) ; 119.6 mm × 221.5 mm × 21.5 mm (Indoor Monitor)
IP Rating IP65 (silicone sealant is needed, see the quick start guide)
Casing PC + ABS
Weight 326 g (IP Villa Door) ; 0.35Kg (Indoor Monitor)
