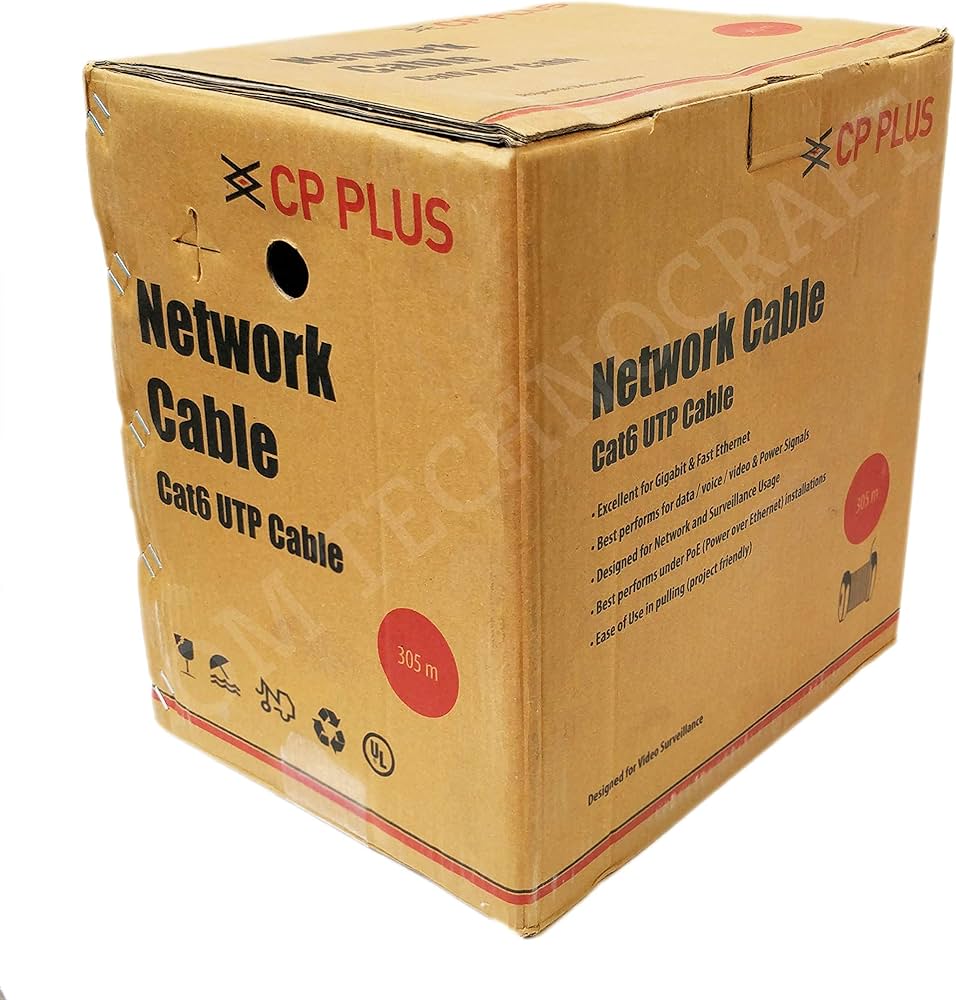

CP-EUT-6TGL23-305

Cat6 24AWG UTP LAN Cable

Solid Bare Electrolytic Grade Copper
Insulation Polyethylene (HDPE)
4 Pair Separator Design
24 AWG cable

Conductor Solid Bare Electrolytic Grade Copper
Insulation Polyethylene (HDPE)
Nominal Conductor Diameter 24 AWG (0.48mm ± 0.020mm)
Cross Filler HDPE
Pairing 2 insulated conductors twisted together
Outer Sheath FR PVC
Operating Temperature -15 to 70°C
Storage Temperature 0 to 50°C
Approximate OD 5.8mm ± 0.1mm
Impedance 100±15% Ω
Resistance Unbalance 5% Max
Colour of Sheath Grey
Sequential Marking Every Meter
Packing 305 Mtrs
