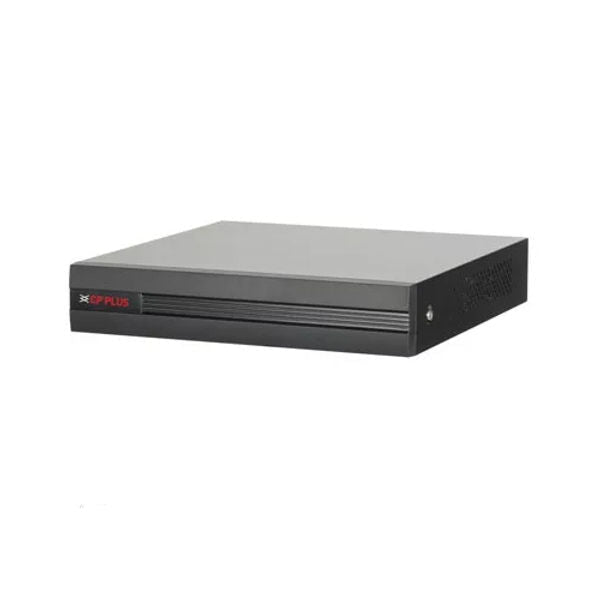

CP-UVR-0401F1-HC

CP Plus 4 Ch. 5MP Cosmic HD DVR

Auto Adaptive HDCVI/AHD/TVI/CVBS/IP signals
Support upto 6MP IP Camera
Max 24Mbps Incoming Bandwidth
All channel 1080P Non-Realtime Recording
Support 1 SATA HDD up to 6TB, 2 USB Ports(2.0)
HDMI / VGA Simultaneous Video Output
H.265+/H.265 dual-stream video compression
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
Description:

Processor Embedded processor
Operating System Embedded LINUX
IP Camera Input 4+2: each channel up to 6MP
Two-way Talk Reuse audio in/out, RCA
User Interface GUI
Video Input 4 channel, BNC
Video Output 1 HDMI, 1 VGA
Video Resolution 1920×1080, 1280×1024, 1280×720
Video Recording Main Stream: 4CH: the 1st channel 5M-N(1~10fps);other channels 4M-N/1080P(1~15fps); 1080N/720P/960H/ D1/CIF (1~25/30fps), Sub stream: CIF/QCIF (1~15fps)
Video Display Split 1/4
Video Channel 4 channel, BNC
Audio Output 1 channel, RCA
Audio Channel 1 channel, RCA
Motion Detection MD Zones: 396 (22 × 18)
Video Loss Supports
Smart Phone iPhone, iPad, Android Phone
Hard Disk 1 SATA port, up to 6TB
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Recording Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Backup Mode USB Device/Network
Playback Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
Max User Account 128 users
Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Ethernet RJ-45 port (100M)
Interface Ports 1 HDMI, 1 VGA, 2 USB2.0
Protocols HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search, ONVIF 16.12, CGI Conformant
Power Supply DC12V/1.5A
Power Consumption <10W(without HDD)
Working Temp -10°C ~ +45°C (+14°F ~ +113°F), 10 ~ 90% RH
Dimension 197mm x 192mm x 41mm
Weight 0.54kg (without HDD)
