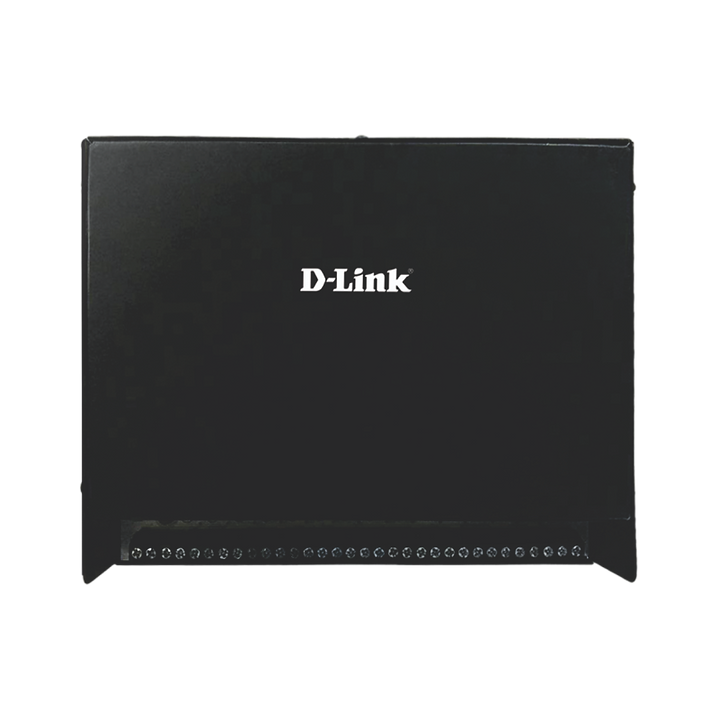

DPS-F1B16

Highly Efficient & Consumes Low Power
Input Voltage-110VAC-300VAC 47/53Hz
Output Voltage - 12V- 1 AMP max per channel
Over Heat & Voltage Protection
Over Load Protection
Highly Integrated SMPS Switcher I.C Design
Short Circuit Auto Restart
Stabilized Output, Low Interference, Surge Protected
Specification:

Input Voltage Range 110VAC~300VAC
Frequency 47Hz - 53Hz
Output Voltage 12.0 VDC
Line Regulation 11.40-12.60VDC
Setup Rise time < 10 mSec. at 230VAC input.
Hold up time > 10 mSec. at 110VAC Input
Inrush current < 50A Peak @ 230VAC Cold start at 25 Deg.
Leakage Current <0.25mA / 265VAC
Auto Reset During overload and short circuit
Input Overvoltage Protection The power supply is withstanding upto 330VAC, without Interrupting
Over Load Protection Auto restart
Ripple <240mV
Surge protection 4 KV
Efficiency > 75% at all load conditions with complete AC input Operating Voltage (110VAC - 300VAC).
Housing Metallic cabinet Powder coating mat finish
Store Temperature -15° to +70° C ambient
Working Humidity 10 ~ 90% RH Non-Condensing
Working Temperature 0ºC to +50ºC with 3.5A, +30ºC Deg with 4.0A
