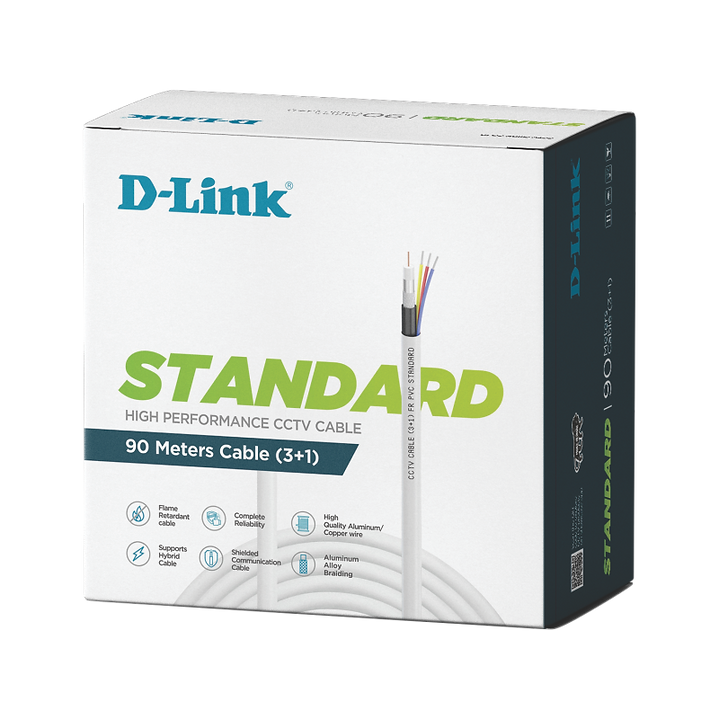

CCTV cable
Color & Material of Outer Sheath FR PVC_White (IEC 60332-1)
Cable Diameter (Oval) 5.8+ /- 0.4mm
Jacket Thickness 0.75+/ - 0.2mm
COAXIAL Cable
Inner Conductor Copper
No. of Conductors 1
Dielectric Solid PE
Color Natural
Diameter 0.51 +/- 0.03 mm
Thickness 1.42+/- 0.2mm
Shield 6mm (Aluminum Myler tape)
Shield - Braiding Aluminum Alloy Braiding
Dia. of Braid Wire 0.11 +/- 0.02mm
No. of Braiding Wires 48
Coax jacket PVC Type ST1
Colour Black
Thickness 0.45 +/ - 0.02mm
III) Insulated Cores Type A
Core Colour Red, Yellow, Grey
CONDUCTOR
No. of Strands 14
Strand Diameter 0.1+/- 0.02 mm
Insulation PVC Type A
Thickness (Average) 0.50 +/- 0.2mm
Diameter (Average) 1.42+/- 0.2mm
