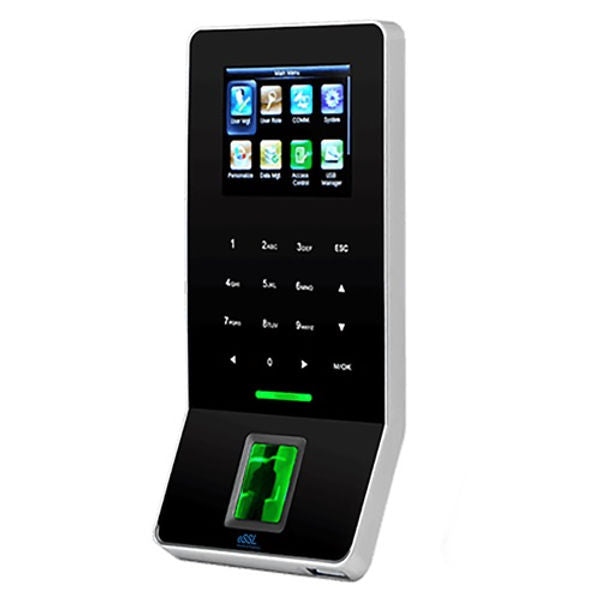

FINGERPRINT - F22

Category:Fingerprint

Features:
Fingerprint Capacity : 3000 ,
Card Capacity : 5000,
Record Capacity : 30000,
Fingerprint sensor : 500 DPI SilkID sensor.

Specifications

STORAGE CAPACITY

Fingerprint Capacity : 3000
Card Capacity : 5000
Finger Algorithm : Finger VX10.0
Record Capacity : 30000
CPU : 32 bit Microprocessor
Coreboard : ZLM60
BIOMETRIC

Fingerprint sensor : 500 DPI SilkID sensor
FAR : <=0.0001%
FRR : <=1%
Identification speed : <0.5 sec
Algorithm Ver : 10
VISUAL

Display : 2.8-inch TFT Screen
Keypad : Yes
LED Indicator : Green/Red
COMMUNICATION

Communication : RS232/485, TCP/IP, USB-host, Built in Wi-Fi
Wiegand : In & Out
Push Data : Yes(support both static IP and domain server)
Standard Features : work code,SMS,DLST, Self service query, Status Switch
STANDARD FUNCTIONS

DST, Automatic Status Switch,Record query, T9 input, 14 digit user ID, Anti-passback Mifare (Optional)
POWER AND ENVIRONMENT

Power Supply : DC 12V --- 1.5Amp
Operating Temperature : 0°C - 45°C
Operating Humidity : 20% - 80%
Dimension (in mm) : (L)158.5 x (W)78.0 x (H)19.4mm
FEATURES

- 2.4inch TFT color screen and Touch keys
- Full Access Control Features: Anti-passback, access control interface for 3rd party electric lock, door sensor, exit button, alarm
- Standard Wi-Fi
- Network interface by TCP/IP or RS485
- Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
- Multiple Verification Modes: Multi-verification methods (card is optional) providing user various choices
EXIT READERS

Support exit readers : FR 1200, Push Button, KR500, Notouch, KR503
ACCESS CONTROL INTERFACE

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
COMPATIBLE SOFTWARE AND SDK

eTimetracklite Desktop & Web
SDK for desktop applications
Web based Device Manager - Bio Server Helps developers & integrators
Supports 3rd Party Payroll/HRMS/ERP and Other applications
