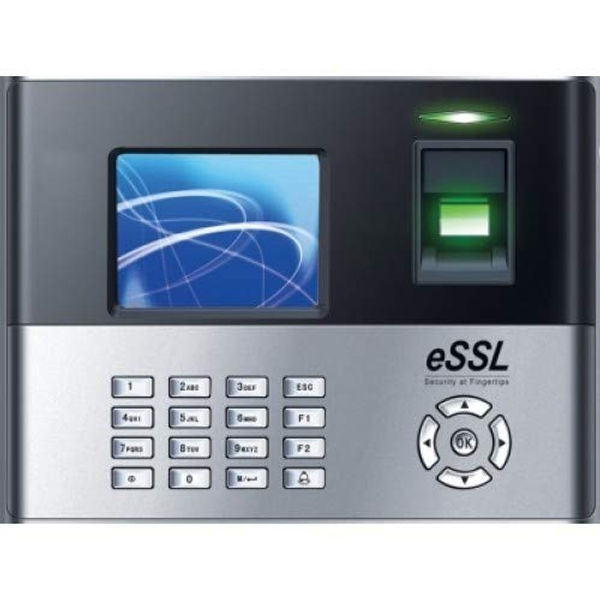

FINGER PRINT - X990

Category:Finger-print

Features:
Fingerprint Capacity : 10000,
Transaction Capacity : 100000,
Card Capacity : 10000 ,
Fingerprint sensor : 500 DPI Optical sensor

Specifications

STORAGE CAPACITY

Fingerprint Capacity : 10000

Card Capacity : 10000

Transaction Capacity : 100000

Card Reader : Inbuilt proximity card reader (Optional Mifare, HID prox)

CPU : 32bit microprocessor

SDRAM : 128 MB Nand Flash

Flash : 256 MB Nand Flash

Kernel : 2.6

BIOMETRIC

Fingerprint sensor : 500 DPI Optical sensor

FAR : <=0.0001%

FRR : <=1%

Identification speed : <0.5 sec

Algorithm Ver : 10

AUDIO/VISUAL

Display : 3" Color TFT

Keypad : Yes

LED Indicator : Green/Red

Schedule Bell/Speaker : Mini Speaker

COMMUNICATION

TCP/IP, USB, (Optional : WiFi, GPRS)

Push data : Yes (support both static IP and domain server) Standard Features : work code,SMS,DLST, Self service query, Status Switch

POWER & ENVIRONMENT

Power Supply : DC 12V --- 1.5Amp

Operating Temperature : 0oC - 45oC

Operating Humidity : 20% - 80%

Dimension(in mm) : (L)210 x (W)157 x (H)40

ACCESS CONTROL

Wiegand : In & Out both 26 or 34 bit (With or without site code)

Relay : 12 V relay for lock EM lock, Bolt Lock or Strike lock

Support Fire Alarm : Yes

Door Sensor : Yes

Anti Passback : Yes

Door Bell : Yes

EXIT READERS

Support exit readers : 101 HE , FR 1200, Push Button, KR500, Notouch, KR503

OPTIONAL

Battery : Yes

Card readers : Mifare/HID Prox

Communication : WiFi/GPRS

Sensor : Mifare/HID Prox

COMPATIBILITY

Compatible with Multi Door controllers via weigand

External Speaker output available (Optional)

External Bulb output available (Optional)

Support External Printer

COMPATIBLE SOFTWARE AND SDK

eTimeTrackLite desktop & web

SDK for desktop applications

Web based Device Management application using Push data. Helps developers & integrators

Supports 3rd Party Payroll/HRMS/ERP and Other applications

MAJOR APPLICATIONS

Time & Attendance , Canteen Management, School Attedance, Production Management, Gym & clubs
