Villa Analog Kit

Analog Kit with picture storage function for villa or house, only one call button

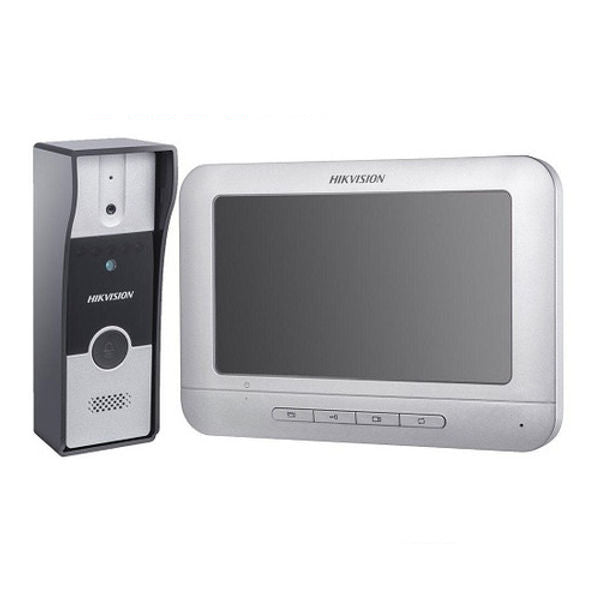

Kit including DS-KB2411T-IM and DS-KH2220-S, 5-meter 4-wire cable, and other accessories

Door Station/Video Parameters

Resolution1920 × 1080
Lens1/2.7" CMOS
FOVHorizontal: 66.2°，Vertical: 37.2°

Door Station/Audio Parameters

Audio Input: Built-in omnidirectional microphone
Audio Output: Built-in loudspeaker

Door Station/Device Interfaces

I/O Output: 1 relay output
Four-Wire: 1 four-wire interface (1-ch video input, 1-ch audio input/output, 1-ch power,supply, 1-ch grounding)

Door Station/General

Power Supply: 12 VDC
Power Consumption: Max. 5W
Working Temperature: -10° C to + 55° C (14° F to 131° F)
Working Humidity: 10% to 90%
Dimensions: 128 mm × 42 mm × 24.8 mm

Indoor Station/Display Parameters

Operation Method: Physical button
Type: 7-inch colorful TFT LCD
Resolution: 800 × 480

Indoor Station/Audio Parameters

Audio Input: Built-in omnidirectional microphone
Audio Output: Built-in loudspeaker
Audio Quality: Noise suppression and echo cancellation

Indoor Station/General

Power Supply: 12 VDC
Power Consumption: ≤5 W
Working Temperature: -10° C to + 55° C (14° F to 131° F)
Working Humidity: 10% to 90%
Dimensions (W × H × D): 195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7")
