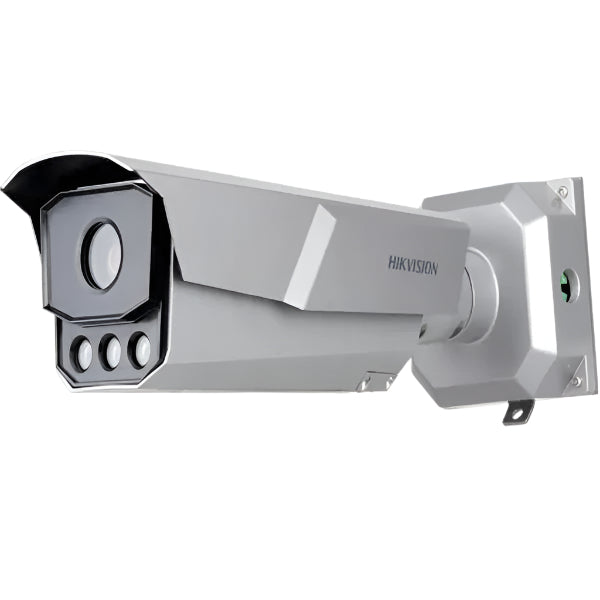

4 MP IR ANPR Smart Monitoring Camera

High quality imaging with 4 MP resolution(1/1.8'' CMOS)
Clear imaging against strong back light due to 140 dB WDR technology
Built-in ANPR engine, equipped with AI algorithm
Efficient H.265+ compression technology to save bandwidth and storage
Water and dust resistant (IP67) and vandal proof (IK10)

Camera
Image Sensor1/1.8″ progressive scan CMOS
Max. Resolution2688 × 1520
Min. IlluminationColor: 0.001 Lux @ (F1.2, AGC ON)
Shutter Time1/25 s to 1/100,000 s
Day & NightIR cut filter
Lens
Focal Length & FOV
2.8-12mm : Horizontal: 113.5° to 39°, Vertical: 58.4° to 22.7°, Diagonal: 141.3° to 44.3°

8-32mm : Horizontal: 41.9° to 15.1°°, Vertical: 22.9° to 8.64°, Diagonal: 48.8° to 17.3°

10-50mm: Horizontal: 32.2° to 7.8°°, Vertical: 18.1° to 4.4°, Diagonal: 37.1° to 8.95°

Focus Auto
Iris TypeDC-IRIS
Apeture
2.8-12mm : F1.38

8-32mm : F1.7

10-50mm : F1.7

Illuminator
Built-in Supplement Light TypeIR light
Built-in Supplement Light RangeUp to 40 m
IR Wavelength850 nm
Video
Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)

Sub-Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)

60 Hz: 30 fps (1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)

Third Stream

50 Hz: 25 fps (1280 × 760, 704 × 576, 352 × 288)

60 Hz: 30 fps (1280 × 760, 704 × 576, 352 × 288)

Video Compression
H.264 and H.265 encoding

Main stream: H.265/H.264/MJPEG

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline profile/Main profile/High profile
H.265 TypeMain profile
Audio
Audio Compression G.711/G.722.1
Audio Bit Rate8Kbps (G.711) /16Kbps (G.722.1)
Network
ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,QoS,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP,802.1X
Simultaneous Live ViewUp to 6 channels
APIONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP
User/Host
Up to 32 users

3 user levels: administrator, operator, and user

SecurityPassword protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Watermark,IP address filter,Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,TLS 1.1,Host authentication (MAC address)
Network StorageMicro SD/TF card (512 GB), local storage and CVR, NVR, ANPR
Web BrowserChrome V61+, IE9 to IE11, Firefox V41+, Edge
Image SettingsRotation mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable via client software or web browser.
Day/Night SwitchAuto/Scheduled/Triggered by alarm in
Wide Dynamic Range (WDR)140 dB
Image EnhancementBLC, 3D DNR
Picture OverlayLogo picture can be overlaid on video with 128 × 128 in 24-bit bmp format
Interface
Ethernet Interface1 RJ45 10M/100M/1000M Ethernet interface
On-Board StorageBuilt-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512GB
AudioSupported
Alarm 1 input interface, 1 output interface, 2 relays
RS-4851 RS-485 interface
Wiegand1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit)
Event
Basic EventHDD Error, Network Disconnected, IP Address Conflicted, Vehicle Detector Exception, Traffic Light Detector Exception
