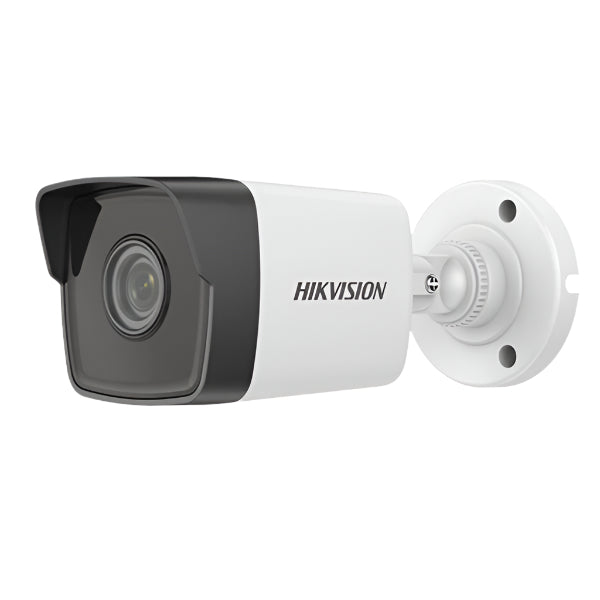

(DS-2CD3051G0-I) 5 MP IR Fixed Network Bullet Camera

Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON)
Shutter Speed 1/3 s to 1/100, 000 s
Slow Shutter Yes
Auto-Iris No
Day &Night IR cut filter
DNR (Digital Noise Reduction) 3D DNR
WDR (Wide Dynamic Range) 120 dB
Angle Adjustment (Bracket) Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°
Lens

Focal Length 4 mm, 6 mm
Aperture F2.0
Focus No
FOV: 4 mm, horizontal field of view: 75°, vertical FOV: 55°, diagonal FOV: 98° 6 mm, horizontal field of view: 49°, vertical FOV: 37°,diagonal FOV: 60°
Lens Mount M12
IR

IR Range Up to 40 m
Wavelength 850 nm
Compression Standard

Video Compression Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 8 Mbps
Smart Feature-set

Behavior Analysis Line crossing detection, intrusion detection
Region of Interest Support 1 fixed region for main stream and sub-stream

Max. Resolution 2560 × 1920
Main Stream 50Hz:12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream Max. Frame Rate 50Hz: 1fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240, 320 x 240) 60Hz: 1fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240, 320 x 240)
Image Enhancement BLC, 3D DNR, HLC
Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Auto/Scheduled/Day/Night
Network

Network Storage NAS (NFS, SMB/CIFS)
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour
General Function Heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Firmware Version 5.5.2
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users 3 levels: Administrator, Operator, and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface

Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
General

Operating Conditions -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
Power Supply 12 VDC ± 25% PoE: 802.3af, class 3
Power Consumption and Current 12 VDC, 0.5 A, max. 5 W PoE (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 6.5 W
Protection Level IP67
Material Front cover: metal, bracket: plastic, camera body: plastic
Dimensions Camera: Ø 70 mm × 172.7mm (2.7" × 6.8") With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Weight Camera: 300g (0.7 lb) With package: 550g (1.2 lb)
